PAI802565 / 20422044 / 801665 / 300280 / 85144378 / 85153115 / K079665X / K128913ORX / 6MN41AM2 / 20414105
краны под номерами 5011740 / 20422046 / 21077060 надо заказывать по частям:
21077060 (5020567) > 85135349 + 20422044(2шт) или 21077060 (5020567) > 85135349 + 85144378(2шт)
ЭтоЧастьКрана 5011740;20422046;21077060

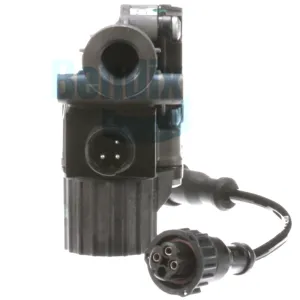

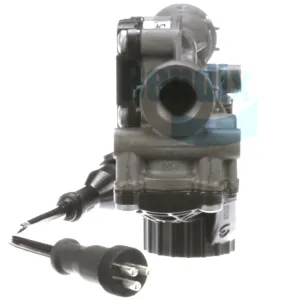

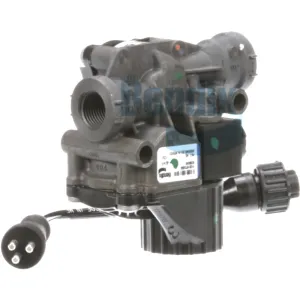

Bendix M-40HF M-32 Traction Relay Valve
Применимость: VOLVO VN MACK
Modulator Type - HF (High Flow)
Mounting - 0.335 IN (2x)
Connector Type - Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Adapter Cable Included - 3-Pin DIN (Straight) to 3-Pin Metric
Supply Port - 1/2-14 NPT
Delivery Port - 1/2-14 NPT
Exhaust Port - Dust Shield
Voltage (Nominal) - 12 Volts
Current (Nominal) - 4.6 A
Duty Cycle - 15 sec / 5 min
Maximum Solenoid "On" Time - 150 sec
Maximum Operating Pressure - 150 PSI
Maximum Operating Temperature - 185 °F (85 °C)
Minimum Operating Temperature - -40 °F (-40 °C)
ОРИГИНАЛ BENDIX
